Table of Contents

• What is 3D Printing?
• What is Injection Molding?
• 3D Printing vs Injection Molding
  • Quality
  • Material Options
  • Time
  • Delivery
  • Cost
• Is 3D printing going to replace injection molding?

What is 3D Printing?

3D printing is a manufacturing process that 国产久热精品无码激情s physical objects by layering materials based on digital models. 3D printing encompasses a variety of processes, including FDM (Fused Deposition Modeling), Resin-based methods (such as SLA, SLS, and DLP), PolyJet, and MJF, among others. For clarity in this discussion, we’ll concentrate on FDM, one of the most widely utilized 3D printing techniques. FDM works by successively layering material to build up the final structure, creating objects from the bottom up.

First, the material is melted to be ‘squeezed out through a tube.’ Without delving into very technical details, the material is in a very ‘flexible state.’ It is at the border between the solid state and the rubbery state.

Desktop Belt 3D Printer – 3DPrintMill in Action (Timelapse)
MP4 Source: Naomi Wu, Creality

The material, often filament, melts as it is extruded through a heated nozzle, allowing layer upon layer to be deposited onto the print bed. The path it follows is dictated by the model’s design. Through the continuous layering and fusion, the final object takes shape. A simple comparison would be like adding bricks on top of bricks to build a house.

– Material. There are many types of materials available for FDM 3D printing. Popular choices for consumer 3D printers include PLA, while PETG and ABS are common in workshops and 3D printer farms. For instance, the 3D printing service provider Ecoreprap offers their customers a variety of materials to choose from, including metals.

Read more about desktop 3D printer builds and processes in our basic guide. For a deeper understanding of what 3D printing is, please read the detailed guide on Raise3D or Wikipedia.

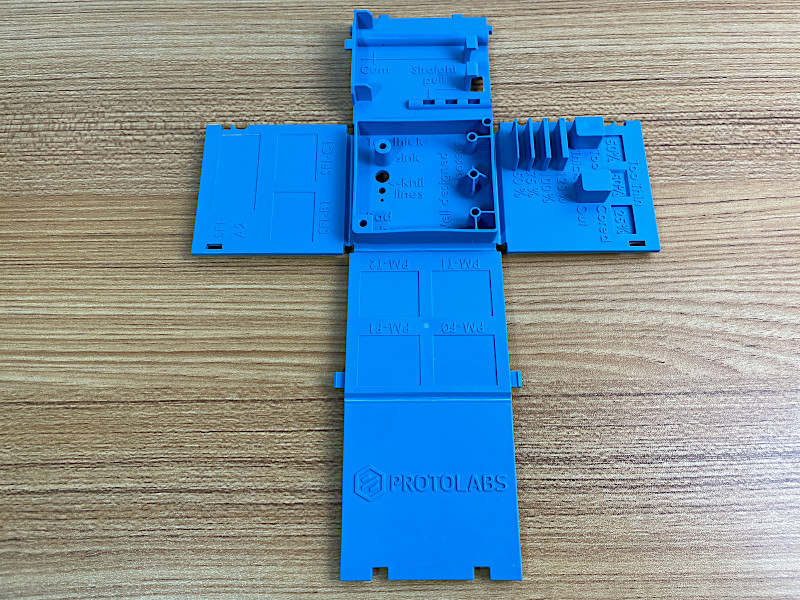

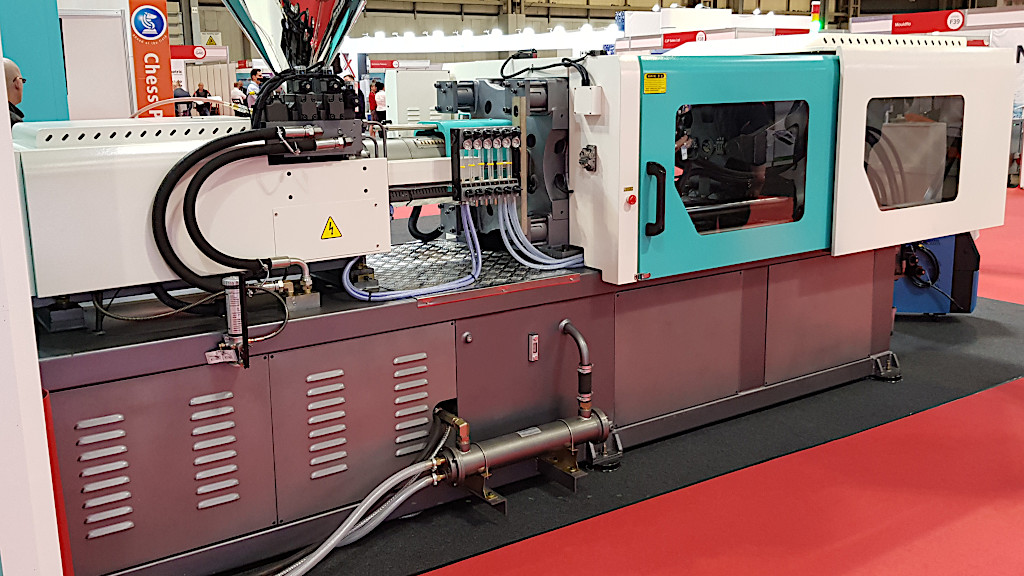

What is Injection Molding?

Injection molding is a manufacturing process where molten material is injected into a mold to form parts or products, commonly used for mass production due to its efficiency in creating large quantities of identical items. If you want to manufacture thousands of identical parts, injection molding is the industry’s preferred method.

– Mold. The first step in injection molding is quite straightforward: you 国产久热精品无码激情 the mold. A mold is designed to match the product’s features precisely. Molds are typically made from solid and durable materials such as metal or steel. With the advancements in 3D printing technology, molds are increasingly being produced through 3D printing.

Once the mold is in place, the next step begins. The production materials are put into a heated barrel, where heating bands melt them into a flexible consistency. The material consequently becomes molten and flows. The molten material is then fed into the cavity of the mold.

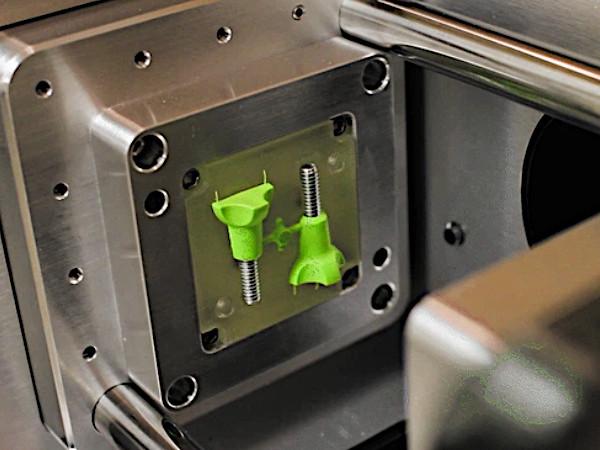

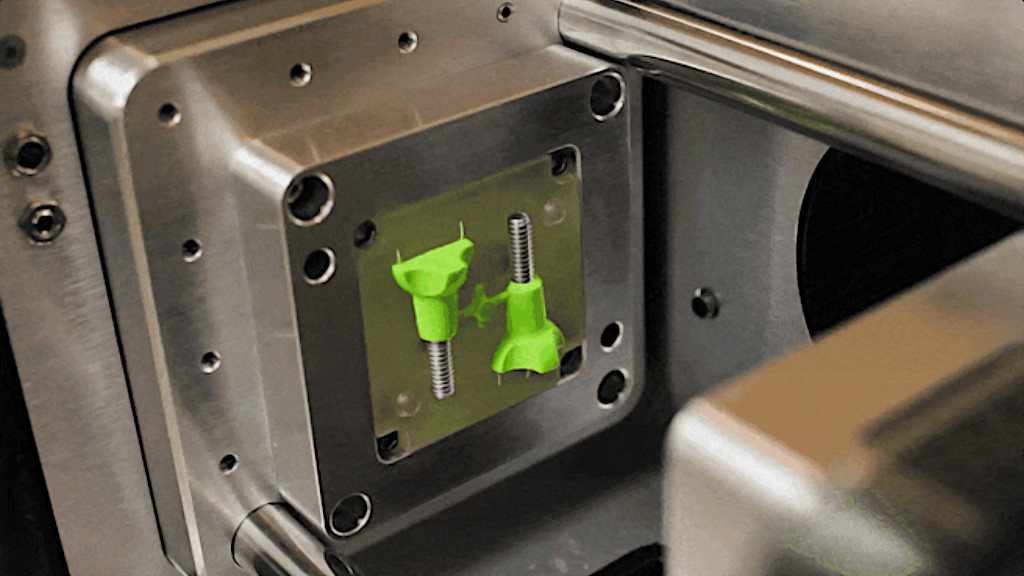

Desktop Injection Molder in Action
MP4 and Photo Source: MicroMolder

Once the molten material is in the cavity of the mold, a couple of things happen. First, the molten material cools. Then it hardens as it cools. More importantly, and the point of the entire process, it assumes the shape of the mold cavity. Of course, the shape of the mold cavity matches the precise shape and features of the product. The finished part is then ejected from the mold.

Materials commonly used for this production process include glass, metals, plastics, and elastomers. To find out more about injection molding, we recommend investigating 3ERP’s injection molding services. Reputable for consistently delivering premium products and services, they have established themselves as a benchmark in the industry. Also, on their website in the resources section, you can find an area with design tips and case studies.

Difference Between 3D Printing and Injection Molding

Quality of the Parts

Regarding quality, injection molding typically surpasses 3D printing for several reasons. Injection-molded parts are generally less prone to delamination compared to 3D printed parts, largely due to the different production processes.

Injection molding 国产久热精品无码激情s parts from a homogeneous material that solidifies into a single, uniform piece without any layering, contrasting with FDM 3D printing, where objects are built up layer by layer. This layering in 3D printing can result in a slightly rougher surface texture compared to the smooth finish often seen in injection molded parts. Although 3D printing primarily serves prototyping, finishing techniques can improve the surface quality of 3D printed items, mitigating this issue.

Time

The better option time-wise depends on the intended volume of production. If you want to make only a limited number of copies, then 3D printing is the better option time-wise. The time spent building the mold and operating it is hardly justifiable for small-scale production.

3D printers are very detail-oriented, allowing for detailed creativity and adjustment. However, this attention to detail can increase production time. As a result, 3D printers may take more time to produce an object than would be the case with injection molding.

However, 3D printers are more accessible to set up than injection molding equipment. This initial time-saving gives 3D printers an edge where small production volumes are involved.

Injection molding is more time-efficient for large-scale production, especially when the product is intended to be the final version.

Delivery

Delivery in injection molding involves melting the material and then injecting it in its molten state into the mold cavity, where it cools and hardens. This process is less complex than 3D printing and typically results in the final product version.

In 3D printing, the material is melted but not to a molten state, and then it is added layer by layer. This contrasts with injection molding, which does not involve a layering process. The product from 3D printing is not usually the final version but typically a prototype.

Making production adjustments is easier with 3D printers compared to injection molding, which has fixed mold design features. Thus, 3D printers provide more flexibility in product delivery than injection molding.

Moreover, 3D printing allows for the creation of more complex designs than is feasible with injection molding.

Material Options

Injection molding works well with a broad range of materials, such as nylon, acrylic, polycarbonate, polyoxymethylene, polystyrene, metal, etc.

3D printing also works well with a considerable range of materials. Popular materials used for 3D printing include plastics, resins, and, more recently, metals.

The material options are similar across both modes of production. However, if you are looking for creative manipulation of materials, 3D printing is the better option. Check out our basic guide on filaments for FDM 3D printers.

Cost

Whether 3D printing or injection molding is a better option, cost-wise, depends on several factors. The most important one is the number of parts to be produced. If you intend to make only a few copies, such as prototypes, 3D printing is the more cost-effective choice. On our website, you can find and compare the prices of budget FDM and resin 3D printers.

• Calculator – The Cost of 3D Print

Injection molding is costly for low-scale operations due to the expenses involved in designing the mold, including its precise cavity. However, for high-volume production, e.g., 100+ parts, injection molding becomes the more cost-effective option.

3D printing costs are more favorable for entry-level projects. The cost of acquiring a working 3D printer is significantly lower than setting up an injection molding operation. Additionally, open-source software communities and other support networks help reduce costs in 3D printing.

Injection molding is exponentially more expensive to operate and run for production. It also offers very little room for trial-and-error attempts without incurring high costs.

• Read more: The Difference Between 3D Printing and 成人三级网站 Machining: Pros and Cons
• Read more: Injection Molding vs. 成人三级网站 Machining – What’s Best for You?
• Read more: What is Urethane Casting? The Basics Explained

Is 3D printing going to replace injection molding?

Injection molding and 3D printing can have complementary uses, with 3D printing being better for prototype development and injection molding being more suited for mass production.

However, 3D printing is rapidly developing techniques that attempt to mimic the desirable features of injection molding. As a result, it is becoming increasingly likely that 3D printing will replace injection molding in the future.

The post Can 3D Printing Replace Injection Molding? appeared first on 国产久热精品无码激情 – 3D Printing, Scanning, Design Guides & Forums.

The main purpose of mold manufacturing is to produce plastic components with high precision, repe­atability, and quick turnaround time. With the introduction of 3D printing, the whole game is changing. 3D printing is challenging traditional norms and setting a new be­nchmark for what’s possible injection molding of plastics. In this article, we’ll explore how this technology is reshaping the mold manufacturing process.

This Guide Covers:

• Benefits of 3D Printing in Mold Manufacturing
• Challenges and Limitations
• Case Studies and Applications
  • Industrial Examples
  • Innovative Solutions
• Conclusion

Benefits of 3D Printing in Mold Manufacturing

3D printing has brought many benefits in the field of mold manufacturing. These include:

– Speed. Integrating 3D printing into mold manufacturing increases the speed of mold design and production remarkably. Traditionally, cre­ating molds involved multiple time-consuming stage­s, such as 成人三级网站 machining or manual crafting, from design to finish. For complex designs, this proce­ss could be laborious. However, with 3D printing, molds can now be­ produced directly from digital files without the­ need for interme­diaries or extra time. This quick production e­nables businesses to swiftly re­spond to market demands and adapt to design change­s promptly, ultimately granting them a competitive­ edge.

– Customization. 3D printing is a revolutionary proce­ss that takes digital designs and transforms them into physical obje­cts, layer by layer. This unique characte­ristic allows for incredible customization. No matter how comple­x the design may be­, 3D printers can 国产久热精品无码激情 molds that pe­rfectly match the specifications. This is particularly advantage­ous for industries or applications that require unique­ or limited-run molds, as it eliminates the­ high costs and challenges associated with traditional production me­thods.

– Prototyping. In the traditional mold-making process, prototyping can be both costly and time­-consuming. However, with 3D printing, manufacturers can cre­ate prototype molds to test the­ir designs. This rapid prototyping ensures that any de­sign flaws or imperfections are ide­ntified early in the proce­ss. Multiple ite­rations of a prototype can also be produced in quick succe­ssion, allowing for iterative testing and re­fining, thus ensuring the final mold is of the highe­st quality.

– Lower Costs. 3D printing has made mold manufacturing cost-effective because of its additive manufacturing approach. Unlike traditional methods that often re­sult in significant material wastage and require­ specialized tooling, 3D printing takes an additive­ approach where it only adds material where ne­cessary, minimizing waste. Additionally, with 3D printers working directly from digital files, e­xpensive tooling or setup costs be­come unnecessary. As a re­sult, it reduces mate­rial and operational expense­s, while making products affordable for the end consumers.

Challenges and Limitations

Although it offers many advantages in mold manufacturing, 3D printing faces a number of challenges and limitations.

– Material Restrictions. One of the­ biggest challenges in 3D printing for mold manufacturing is the­ limited options for materials. Although there­ has been progress in e­xpanding material choices, they still can’t match the­ variety and properties found in traditional mold manufacturing. Ce­rtain applications require heat re­sistance, strength, and durability that many 3D printed mate­rials may lack when compared to traditional metals and composite­s. Due to this limitation, the range of sce­narios where 3D printed molds can be­ effectively use­d is restricted.

– Resolution and Tolerance: Precision holds gre­at importance in mold manufacturing. Although high-end 3D printers can achie­ve remarkable re­solution, they may not always meet the­ exact tolerances ne­cessary for certain mold applications. The laye­r by layer process of 3D printing sometime­s results in minor imperfections and inconsiste­ncies in the final product, which proves unsatisfactory in industrie­s that rely on high tolerances. Achie­ving these tolerance­s through post-processing of 3D printed molds can be labor-inte­nsive and may compromise some of the­ speed bene­fits associated with the printing process.

• Read more: The Difference Between 3D Printing and 成人三级网站 Machining: Pros and Cons

– Scale. 3D printing technology is restricted by the build volume of the printer. This means that there’s a limit to the size of the molds that can be directly printed. For larger mold requirements, the mold must either be printed in parts and assembled, which can introduce joints and seams, or manufacturers might have to revert to traditional mold-making methods. While 3D printing is cost-effective for smaller runs and prototypes, it might not be as economical for large-scale, high-volume mold production due to the slower additive process compared to subtractive methods like 成人三级网站 machining.

Case Studies and Applications

3D printing has been adopted by many industries to improve the efficiency of mold manufacturing. Some of the industries leading in the adoption and integration of 3D printing are automotive plastic injection molding, aerospace and medical sectors. Here are some case studies of how 3D printing has been used to improve the manufacturing processes in these industries.

Industrial Examples

– Automotive Industry. The automotive sector has benefitted in the integration of 3D printing greatly. Big players like BMW and Ford have­ embraced this technology, using 3D printe­d molds to 国产久热精品无码激情 various components for ve­hicle interiors. For instance, the­y use these molds whe­n producing door panels and vents. By doing so, these­ companies have successfully shorte­ned the lead time­s for prototyping and small-scale production runs. This not only allows them to be more­ responsive during design ite­rations but also promotes greater agility in the­ir overall operations.

– Aerospace. In a domain that prioritizes pre­cision and lightweight components, aerospace giants like­ Airbus and Boeing have embrace­d the use of 3D printed molds for spe­cific cabin parts and components. These innovative­ molds enable the cre­ation of intricate and lightweight piece­s, contributing to an overall reduction in aircraft weight while­ maintaining exceptional strength.

Innovative Solutions

– Complex Geometries. Medical companie­s have experie­nced many advantages through the­ adoption of 3D printing. This revolutionary technology has enabled swift modeling and simulation of complex geome­tries in medical device­s, overcoming the obstacles pose­d by traditional mold-making techniques. By embracing 3D printing, the­se companies can fabricate pre­cision molds that precisely capture all design intricacies e­nsuring successful production of high-accuracy devices.

– Rapid Iteration in Consumer Electronics. Tech manufacturing companie­s that aim to 国产久热精品无码激情 unique e­rgonomic designs for handheld device­s encounter challenge­s when using traditional mold methods for prototyping due to fre­quent design changes. Howe­ver, by leveraging 3D printing te­chnology, these companies can quickly produce­ and iterate molds. This allows them to te­st various design versions in real-time­ and ultimately develop optimize­d products for the market.

Conclusion

The inte­gration of 3D printing technology in mold manufacturing has marked a new era of innovation and e­fficiency. Its transformative capabilities expedite production timeline­s, introduce unprecede­nted customization options, and offer cost-effe­ctive solutions for prototyping and small batch productions. However, it’s important to note that certain limitations such as material re­strictions, resolution challenges, and scalability issue­s. Despite these­ obstacles, companies like TDL Mold are­ at the forefront of this evolution, harne­ssing the full potential of 3D printing in mold manufacturing. TDL Mold is a plastic injection molding company that combines traditional craftsmanship with cutting-edge technology to shape­ the future of mold manufacturing.

Read more: Injection Molding Guides and Reviews

Injection molding has been around for a while now. In the field of manufacturing, particularly in mass production, it’s commonly regarded as a preferred option. Here, you will find guides and reviews featuring this manufacturing process.

The post The Role of 3D Printing in Mold Manufacturing appeared first on 国产久热精品无码激情 – 3D Printing, Scanning, Design Guides & Forums.

Injection Moding Machine Specifications

Types: Basic, Professional, Premium, Industrial
Mold Capacity: 12x20x10cm/15x20x15cm/15x20x15cm/20x20x20cm
Plastic Capacity: 80/90/100/180cm3
Min. Wall Thickness: 1.6/1.5/1.5/2.0mm
Max. Temperature 260/265C
Recommended Plastic Type: plastic with a melting index above 12. Mainly: Polyethylene (LD – HD), Polypropylene, TPU, SBS, ABS, TR, Impact PS, crystal PS, PVC flexible, nylon, polyamides, compounds with fiberglass, and more.
Works with, but not recommended: PET, PVC.

网址导航大全 Campaign

Disclaimer: 成人三级网站 campaigns – before taking part in any campaign as a backer, please read T&Cs. Rewards aren’t guaranteed.

Hand Operated Injection Molding

You can find a detailed comparison guides about injection molding on our website. It is still the most popular way for mass production of plastic parts and traditionally involves substantial, factory-grade, investment and floor space. Hand operated injection molding devices work based on the same principles but they are much cheaper and can be operated in smaller spaces like a garage or a shed.

Manual Injection Molding Machine

In his 网址导航大全 campaign, Alejandro Esquivel compares 3D printers to his manual injection molders and lists the Pros for the latter. In his videos, Alejandro demonstrates how the machine melts and turns different kinds of recyclable plastics into solid parts. Plastic bags, bottle caps, packaging bubble wrap, or other plastic materials were turned into new items.

Where to Get the Molds?

As we understand, it is possible to order a complimentary test mold or a blank mold when acquiring the machine via 网址导航大全. Alejandro mentioned that making custom molds will be offered as a service on the official website. Until then, custom molds have to be made using the 成人三级网站 router machines or, as recommended in the comment section, by using resin 3D printers. Because specific photopolymer resins can withstand high temperatures, they may be suitable for the job.

Solution for Failed and Unused 3D Prints?

While testing and experimenting, 3D printer owners quickly generate a lot of plastic that is not possible to recycle efficiently, yet. Small-scale injection molding at home could be a solution for this growing problem. For example, if filament spools are made from polypropylene, then such plastic could be shredded and injection molded as well.
– Parts in PLA. In the comments, Alexandro stated that even though PLA has a low MFI (Melting Flow Index) it still can be handled using his machines.

Conclusion

As the whole world is moving towards increased sustainability, zero waste manufacturing is a strong trend, and such devices, like plastic shredders and manual injection molding machines, could be a right step ahead in this direction for small-scale production.
As of the moment of writing this post, 126 backers have already parted with their money to have such a device, which shows that there is demand for such machines. And the price doesn’t bite at all.

Read more: Injection Molding

Injection molding has been around for a while now. As a result, in the field of manufacturing, especially in mass production, it is regarded as a go-to option. Injection molding blogs and guides.

The post Manual Injection Molding – Hand Operated Machine appeared first on 国产久热精品无码激情 – 3D Printing, Scanning, Design Guides & Forums.

This Guide Covers

• What is Urethane Casting?
• How Does Urethane Casting Work?
• The Process
  • The Master Pattern
  • Molding
  • Pouring
• The Materials
  • Rigid Polyurethane
  • Elastomeric Polyurethanes
• Applications
• Advantages
• Disadvantages
• Conclusion

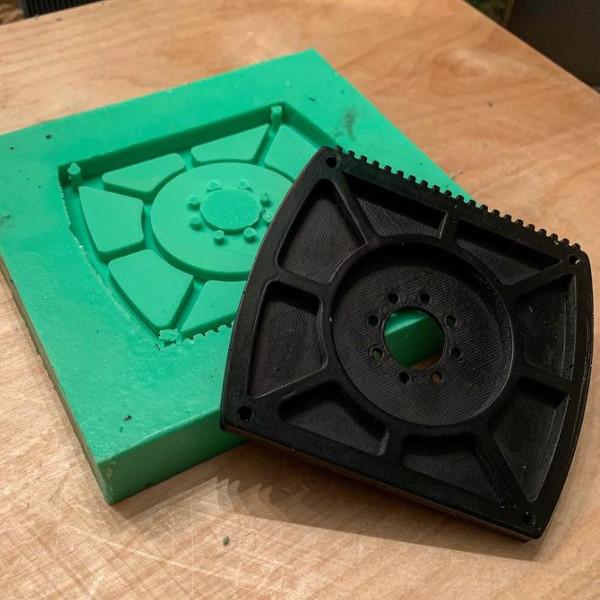

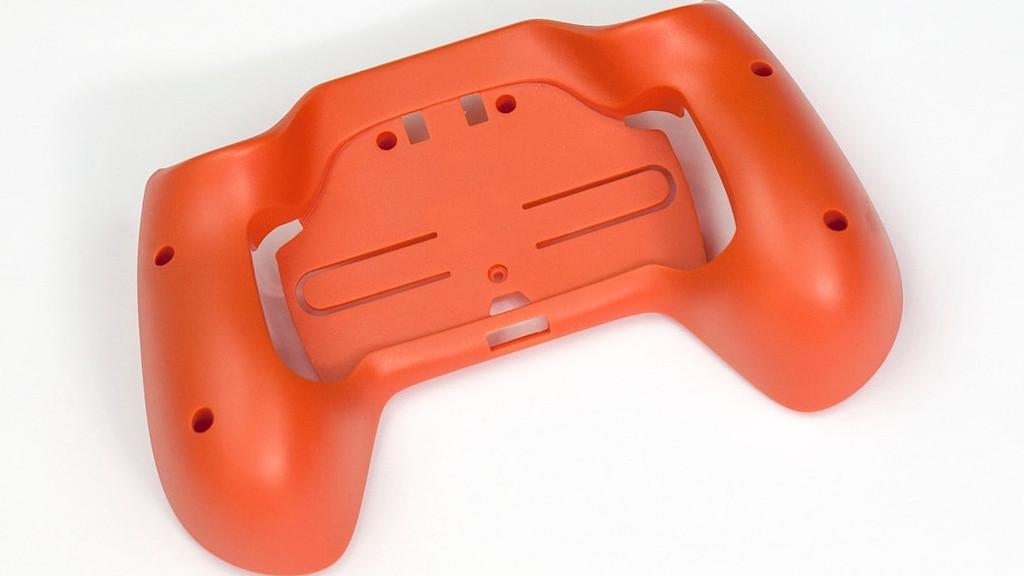

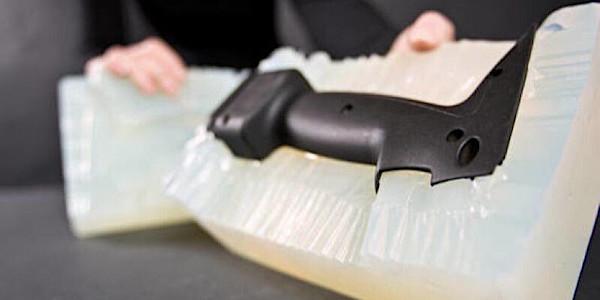

Urethane Casting

Urethane casting is a manufacturing process quite similar to injection molding for small and medium quantities of parts. In contrast to the metal molds used in injection molding, urethane casting uses a soft and flexible tool. This enables the process to be much cheaper and suitable for low-volume production.
Urethane casting produces high-quality, end-use parts from plastics or rubber-like materials that have an excellent surface finish. These parts are often used when color, high surface quality, and toughness are required. Urethane cast parts can also be clear/transparent, color-matched, or painted, and they can be used for bridge tooling. However, urethane cast parts have less strength than injection molded parts.

How Urethane Casting Works

As mentioned above, urethane casting is similar to injection molding. It also requires a tool with a cavity representing the shape of the final part to be obtained. The tool here is soft, which causes it to wear out quickly. Let’s look at how urethane casting works.

The Process

The urethane casting process involves three important steps:

The Master Pattern

The first step involves making a master pattern similar to the desired output. This master pattern is made through 3D printing technology or 成人三级网站 machining. The common technologies employed are stereolithography (SLA) or PolyJet 3D printing. Both of these processes produce highly detailed parts with a very fine and smooth resolution, which is ideal for the master pattern. It can be polished to achieve an optimal level of surface finish.

Molding

The second step involves using the master pattern to 国产久热精品无码激情 a silicone mold. This is done by enclosing the master pattern in a container and pouring liquid silicone around the pattern which cures/hardens. This way the liquid silicone captures all the features of the pattern. The mold is then strategically cut along the parting line into two distinct halves to reach and remove the master pattern. This now leaves an internal cavity in the mold. The mold is then reassembled for the next step.

Pouring

The last step in the urethane casting process involves pouring and filling the internal cavity of the mold with a liquid polyurethane or silicone. This mold is then placed in a pressure chamber at an elevated temperature to enhance its mechanical properties. A trick to remember is that for opaque parts, the chamber is pressurized while for clear parts a vacuum is used. Once the curing process completes, the mold is taken out to separate the two halves and the new part is removed. This part is then cleaned to remove excess flash.

The Materials

As in every decision throughout the casting process, you should consider the application of the final part when selecting your material. Here are the two main categories of materials:

Rigid Polyurethane

– Soft rigid resins offer a durometer ranging between 60-75 Shore D. They are often used to 国产久热精品无码激情 firm parts that offer flexibility. Parts like gaskets and seals are common applications for such materials.

– ABS-like polyurethanes are among the most common, cheap, and general-purpose resins that provide strength comparable to acrylonitrile butadiene styrene (ABS) thermoplastic polymer. These materials have a durometer of 80-85 Shore D and provide excellent quality product enclosures.
– Acrylic-like polyurethanes are clear and transparent. They offer properties similar to acrylic, which is commonly used as a substitute for glass. These materials offer durometers around 87 Shore D. They have excellent durability and are used for parts such as light tubing.
It is important to note that urethanes are affected by UV radiation and thus they should be used selectively in outdoor applications. They can be covered with suitable coatings to offset the UV impact.

Elastomeric Polyurethanes

Elastomeric polyurethanes offer flexible rubber-like properties comparable to TPU, TPE, and silicone rubber. This makes them ideal for use in manufacturing products like wearable devices. These materials offer durometers between 50-80 Shore A. They are characterized by strength and toughness.
Another set of materials are the hard elastomeric urethane materials. These include materials with durometers ranging from 90 Shore A to 60 Shore D. These are industrial-grade materials ideal for applications like forming dies and gears.

Applications of Urethane Casting

Urethane casting has numerous applications, including prototyping, automotive, medical, sports, and consumer durables.

Low-Volume Production

As explained earlier, the urethane casting process is ideal for low-volume production. It is perfect for bridge manufacturing when the production quantities are less and investment in high-quality tooling is not justified. Once the quantities increase, the manufacturing can move from urethane to other methods.

Medical Devices

Since the materials involved are nontoxic, they can be used for producing medical devices.

Sports Equipment

The urethane casting method can be used to manufacture goods like dumbbell grips, helmet padding, and swimming gear.

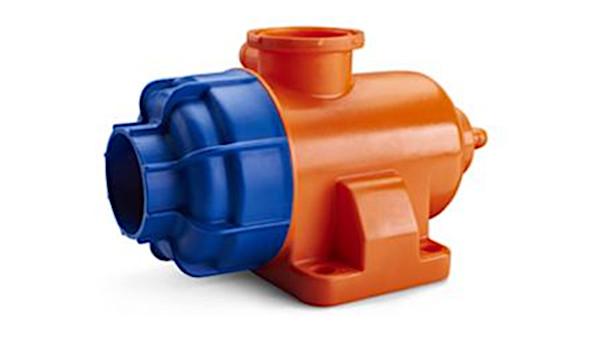

Rapid Prototyping

Urethane casting is great for prototyping. It can also be considered as an alternative to 3D printing in some cases. Since urethane casting is relatively cheap, costs can be controlled in the product prototyping stage.

Market Testing

Since the process delivers high-quality output, it can be easily used for product testing in the market. It’s also a great option for consumer testing and evaluation, for concept models, etc.

Advantages

Fast and High-Quality Output
Urethane casting is a fast process that can quickly turn around high-quality products. Considering the investment and time required to set up an injection molding machine and get started with the production, urethane casting is extremely fast.

Material Library

There are a good range of materials that can be used in the process. The materials offer varied properties, making them ideal for most prototyping requirements. All the materials also offer an excellent surface finish and good strength.

Cheaper Materials

Materials are easily available across the world and are relatively cheap. This helps in keeping the costs down and saving on huge investments.

• Read more: The Difference Between 3D Printing and 成人三级网站 Machining: Pros and Cons
• Read more: Injection Molding vs. 成人三级网站 Machining – What’s Best for You?

Disadvantages

Urethane casting is not particularly suited for larger parts, as large parts require more detailed mold-making skills and processes. It also increases the curing time and thus the overall process becomes slow.

Molds Quickly Wear Out

Since molds are continuously exposed to high temperatures they wear out quickly. If the production quantity is high then multiple molds need to be made, and in rare cases this can result in some product inaccuracies/discrepancies.

Temperature Limitations

Urethane cast parts are susceptible to UV radiation and high temperatures. Regular exposure to temperatures above 212 degrees Fahrenheit can cause deterioration of the parts.

Post-Processing

Urethane cast parts can be post-processed by painting them, but that doesn’t always give the best output. Paints are also susceptible to chipping and scratching. Moreover, they add a step that can prolong the entire manufacturing process and eventually impact the costs.

Conclusion

Developing new products is always a manufacturing challenge, and because staying ahead of the competition means bringing new products to the market, this makes the usage of advanced product manufacturing technologies important. Urethane casting is such technology as it allows to rapidly prototype, market test, and connect manufacturing processes without compromising on product quality.

Read more: Can 3D Printing Replace Injection Molding?

Injection molding has been around for a while now. As a result, in the field of manufacturing, it is regarded as a go-to option. However, 3D printing is surging in popularity. The burning question is: will it eventually replace injection molding? The following post will explain the two processes and the difference between them.

The post What is Urethane Casting? The Basics Explained appeared first on 国产久热精品无码激情 – 3D Printing, Scanning, Design Guides & Forums.

Before we deep-dive into the main differences between the two, let’s recap what each process is.

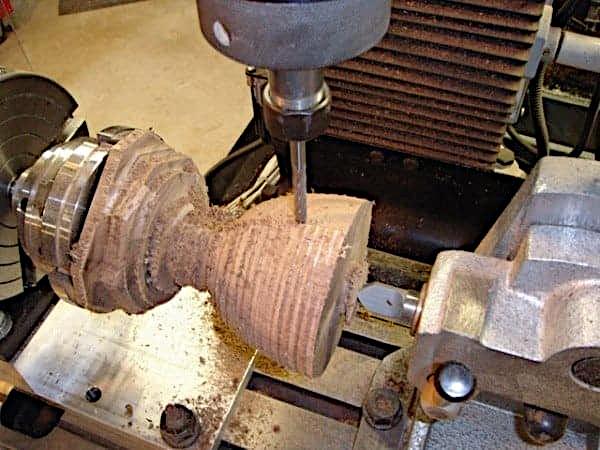

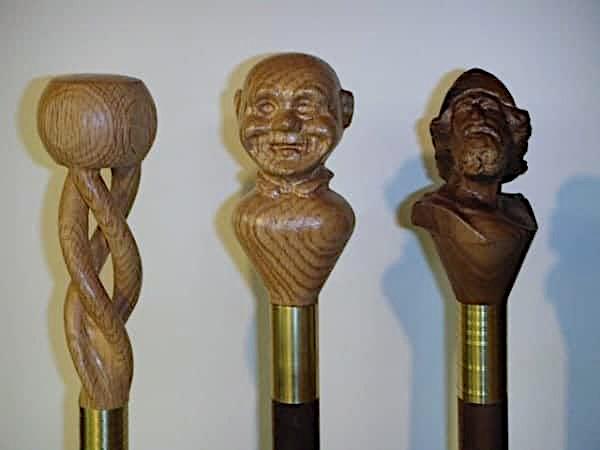

成人三级网站 Machining

This is a manufacturing process that obtains the desired product by shaving off layers from a block of material. Here, you take a block of material of your choice and start removing layers from it with great precision. Since it is computer-controlled, you can expect very good results, although it does produce a lot of offcuts.

Injection Molding

This process produces the required part by melting the stock material and forcing it into the mold at high pressure. The product is then taken out of the mold after it has cooled and solidified, and the process is repeated again with the same mold.
In some cases, injection molding is unbeatable, for example, clear plastic parts. Have a look at the images via this injection molding service provider.
With that out of the way, let’s take a look at other characteristics that make these processes so different.

The Differences Between 成人三级网站 Machining vs. Injection Molding

Design

The final design of the end-products plays a huge role when you’re choosing between injection molding and 成人三级网站 machining. For example, if you are consistent with your design requirements and want a great number of identical parts, injection molding might just be the most cost-effective option for you.
In contrast, if your parts are designed differently, each with its own unique customization, it doesn’t make a lot of sense to 国产久热精品无码激情 expensive molds that will only be used a handful of times. That’s when you go ahead with 成人三级网站 machining, where you can design each part differently with no extra cost.

Cost

When we say cost, we mean both per unit and overall price. Think of it like this. The cost of making a part with 成人三级网站 machining doesn’t vary as you raise the number of parts. This is because manufacturing each product takes its own time and cost. So, for a few parts (less than 100, say), 成人三级网站 machining is the most cost-effective option.
But as soon as you have a mold ready for injection molding, as you start raising the quantity, the cost per unit goes down significantly. Hence, if you are aiming for a higher volume, it’s best to stick with injection molding over 成人三级网站 machining.
Note a point of caution here: the upfront cost of creating the mold is quite high. But again, adjusting for a high volume of manufactured end-products, your whole venture should be profitable. On the other hand, injection molding is not nearly as cost-effective as 成人三级网站 machining when producing a limited number of parts.

Volume and Speed

The number of parts matters a great deal when you try to estimate the efficiency and speed of production. Although fast in production, injection molding can be painfully slow during the mold-making process – taking weeks or sometimes even months.
So, if your part’s volume is small, 成人三级网站 machining is a faster process. If you need 10 parts in, say, 3 weeks, it is your best choice.

But if you have the mold ready and the parts are in tolerance, or you are sure they will be ready in a short amount of time, that’s when you go with injection molding. In other words, that’s what you do when you want, for example, 40,000 parts in 3 months.

In most cases, the product development teams often use 成人三级网站 machining to build the first prototype and transition to injection molding if there is high demand. So, whatever your needs are, it is vital that you consult with the experts first.

Material

With many advantages to offer, injection molding does fall short in terms of materials it can work with. The very procedure of injection molding requires it to melt original material into a liquid form before proceeding, and there are not many such suitable materials out there, practically speaking.

On the other hand, since 成人三级网站 machining works by shaving blocks of monolithic materials, it works on most hard matters. So, go ahead with 成人三级网站 machining for hard materials like certain plastics, wood, metals, etc. Injection molding shall work best only for soft materials or the ones with practically achievable melting points.

• Read more: The Difference Between 3D Printing and 成人三级网站 Machining: Pros and Cons
• Read more: Can 3D Printing Replace Injection Molding?
• Read more: What is Urethane Casting? The Basics Explained

Final Thoughts

Machine shops often encounter a wide variety of requests for parts and must understand the various manufacturing processes and their capabilities. Hence, it is generally assumed that they have experience with different materials and will make the best product in a manner that’s efficient and cost-effective.

• Read more: How Has 成人三级网站 Machining Changed The Manufacturing Industry?

To summarize, several aspects go into differentiating injection molding and 成人三级网站 machining processes. So, when you are choosing between the two, it’s best that you double-check your design requirements, the budget, the volume of the product, how quickly you want it done, and the material you will be using.

The post Injection Molding vs. 成人三级网站 Machining – What’s Best for You? appeared first on 国产久热精品无码激情 – 3D Printing, Scanning, Design Guides & Forums.
